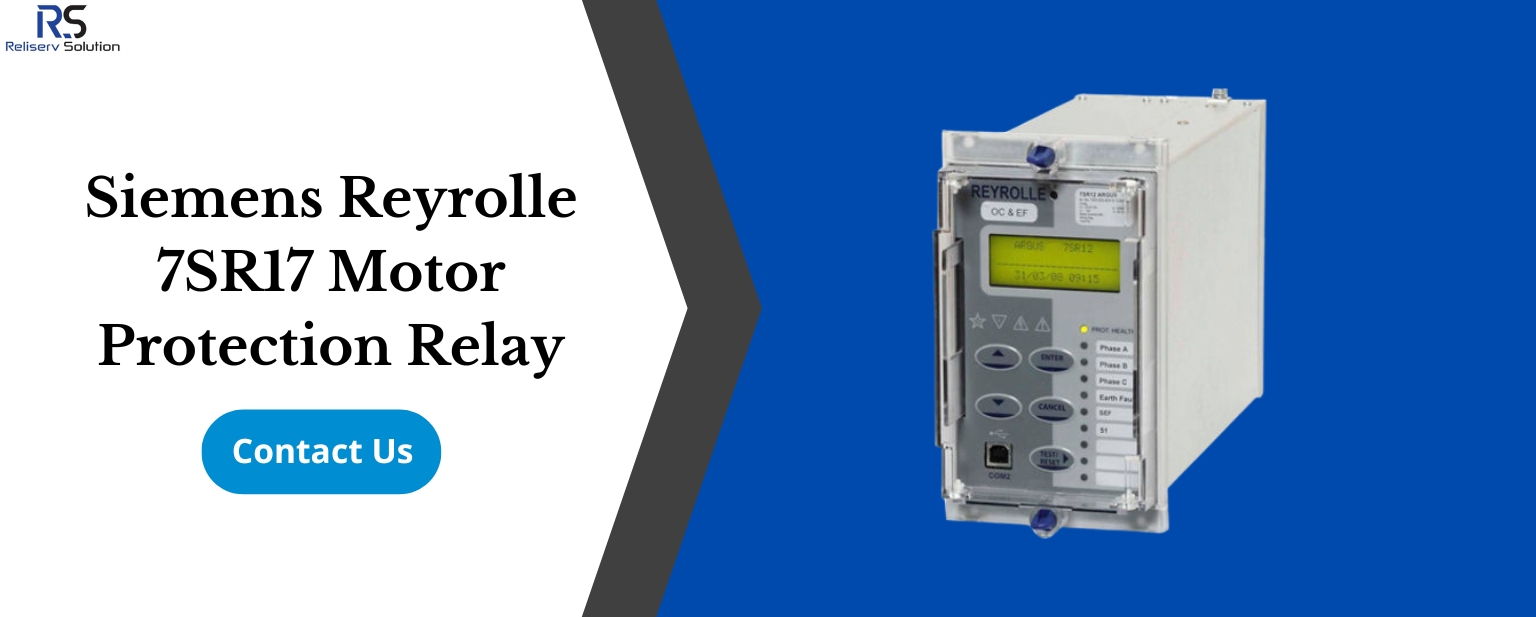

Best Siemens 7SR17 Relay Suppliers

The Siemens Reyrolle 7sr17 relay is a numerical protection relay they are provided with four current inputs and optionally three voltage inputs. These devices provide protection, monitoring, instrumentation, control and metering with integrated input and output logic. They also have other functionality like data logging and fault reports. The device is generally applied to motors and their connections providing an integrated protection system. They are used as stand alone devices but are capable to be supplied with an external unit to interface with remote temperature detectors ingrained in the motor or installed on auxiliary equipment. Get Reliable products as Reliserv Solution is one of the best Siemens 7SR17 Relay Suppliers in India.

Siemens Reyrolle relay has thermal protection optimized for all motor applications with motor starting supervision algorithms. These relays are multifunctional devices and also provide other protections and are selectable as required so that a smooth installation can be achieved without any error. The relay is capable of providing both current and voltage-based motor protection algorithms for various industrial motor feeder applications thanks to its draw out enclosure, higher RTD inputs enhanced BI/Os and multiple communication interfaces including IEC 61850. Siemens Reyrolle motor protection relay provides optimal protection platforms for all types of panel builders providing industrial and distribution applications. Siemens 7sr17 relay is provided in an E4 case its user-configurable with integrated logic that enables the optimal configuration of relay input and output functionality.

These devices have an expansive protection function package with reliable hardware design as standard with options for increased binary inputs & outputs, voltage inputs, and IEC61850 communications.

7SR17 Relay Protection Functions

• Stall Protection (14)
• Under/Over Voltage (27/59)
• Power/Power Factor (32/55)
• Undercurrent (37)
• Current Unbalance Protection (46)
• Phase Reversal (46Ph Rev)
• Voltage Unbalance (47)
• Start Protection (48/66)
• Motor Thermal Overload (49R)
• Directional Overcurrent (67)
• Directional Earth Fault (67G/67N)
• Backspin Protection (81B)
• Under/Over Frequency (81)
• High Impedance REF (87REF)
• Temperature Inputs (via Comms Port) (RTD)

Get Reliable products as Reliserv Solution is one of the best Siemens 7SR17 Relay Suppliers in India.

Supervision Functions

• 60CTS CT Supervision
• 74T/CCS Trip & Close Circuit Supervision
• 60VTS Supervision

Control Functions

• Motor Start/Stop
• 86 Lockout
• CB Control

Get Reliable products as Reliserv Solution is one of the best Siemens 7SR17 Relay Suppliers in India.

Monitoring Functions

• Primary/Secondary Current Phases and Earth
• Primary/Secondary Line and Phase Voltages
• Apparent Power and Power Factor
• Real and Reactive Power
• W Hr and VAr Hr Forward & Reverse
• Historical Demand Record
• Voltage & Current Positive Phase Sequence (PPS)
• Negative Phase Sequence (NPS) Voltage & Current
• Zero Phase Sequence (ZPS) Voltage
• Frequency
• Direction
• Binary Input/Output status
• Trip circuit healthy/failure
• Time and date
• Starters
• Fault records & Event records
• Energy
• Circuit breaker trip counters
• I2t summation for contact wear

Get Reliable products as Reliserv Solution is one of the best Siemens 7SR17 Relay Suppliers in India.

Benefits Of Reyrolle Relay

• Siemens relay is a one-box solution that provides a complete set of motor-specific protection as well as supervision functions.
• The device is provided with user-configurable thermal curves that enable the application of all motors.
• The has a local interface to ensure consistency across all outcomes with a familiar layout.
• USB port for easy connection.
• local access has a user-friendly interface that enables protection settings to be viewed and edited from the fascia.
• Optional Ethernet Optical/Electrical interface for IEC61850
• Compatible with both IEC61850 Editions 1 & 2
• Supports redundancy protocols PRP and HSR.
• Alarms and indications are user-configurable and are provided on LCD and 9 coloured LED.

Reydisp Software

The Siemens user-friendly PC software tool assures an effortless installation of an efficient and intuitive interface to the relay.

Siemens is one of the most trusted and oldest leading MNCs in India thanks to its quality products for diverse types of power systems. Get Reliable products from one of the best Siemens 7SR17 Relay Suppliers in India. To get the best deal on Siemens Reyrolle 7SR17 Motor Protection Relay contact us as Reliserv Solution is the authorized Supplier and also Channel Partner of SIEMENS Make Numerical Relays, Automation Products, Power Quality Meters & Instruments, MV Switchgear Spares, PSS SINCAL Software. We Reliserv Solution are the leading Reyrolle products supplier and exporter in Mumbai, Maharashtra. We also provide a wide range of services & customized solutions for Industries & Panel Builders. Contact us at +917506112097 or mail us your requirements at [email protected]. We deal in a wide range of products in Siemens Reyrolle to learn more about our Siemens Numerical Relays collection click here.
