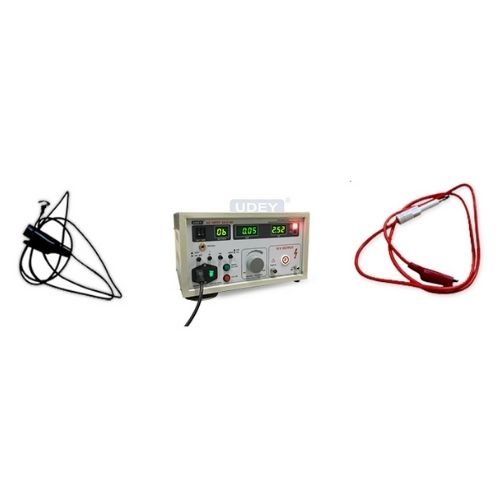

5 kV AC Hipot DC Hipot Testers DPC series Udey Test Kits

5 kV AC Hipot DC Hipot Testers DPC series Udey Test Kits : UDEY AC HIPOT TESTERS-US SERIES are AC High voltage break down / withstand voltage testers with digital displays, count-down timer and set trip current facility. These are accurate, durable instruments designed to perform high voltage withstand / breakdown tests on various types of electrical / electronic products, systems and components.

Machine Feature

• Digital readouts of test voltage, leakage current and time
  • Multi-range mA meter
  • Timer count-down digital display
  • Digital display to set trip current
  • ‘HV ON’ and “FAIL’ indicators
  • Panel with legend for controls
  • Optional HV gun for output
  • Rugged table top cabinet Safety
  All metal cabinet
  High quality double wound HV transformer
  Good quality components and hardware
  Extra EARTH Post Provided



Machine Technical Specification

Supply Voltage	230 Volts ± 10%AC, 50 Hz single Phase.
Output Voltage	0-5kV AC, 50Hz.
Output control	One knob manual control, continuously variable through torodial auto transformer.
Output Current	2-20-100 mA.
Trip Current: Settable	3 ranges: 0.1-2mA; 0.1-20mA; 0.1-100mA
Indicators	Lamps to indicate ‘HV ON’, ‘FAIL’.
Alarms	Range: 0.1-5.00 kV Display: LED digital 3 digits Resolution: 0.01 kV Accuracy: ± 3% + 4 digits
kV Meter	Range: 0-2mA; 2-20mA and 20-100 mA Display: LED digital 3.5 digits Resolution: 2mA range: 1uA : 20mA range: 10uA : 100mA range: 100uA Accuracy: ± 3% + 4 digits
Timer	Settable : Thumbwheel switch:1-99 seconds Display: LED Digital 2 digits, countdown. Resolution: 1 second Accuracy: ± 5%
Duty Cycle	15 minutes ON / 15 minutes OFF.
Dimensions	38 x 28 x 19 cm;
Weight	15 kg
Shipping Dimensions	43 x 33 x 24 cm;
Shipping Weight	18 kg



Standard Accessories

1. a) Mains cord 2 meter long: 1 Number.
   b) HV test leads 1 meter long: 1 Set.
