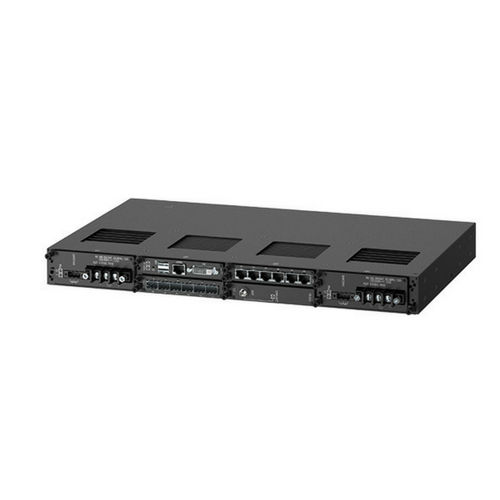

SIEMENS RUGGEDCOM RX1501 MULTI-SERVICE PLATFORM

The RUGGEDCOM RX1501 Ethernet Switch series is a cost efficient utility grade Layer 2 and Layer 3 switch and router. The RX1501s modular and field replaceable platform allows customers to select amongst WAN, serial and Ethernet options making it ideally suited for electric power utilities, the industrial plant floor, rail and traffic control systems.

The RUGGEDCOM-Selector lets you configure RUGGEDCOM products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the Industry Mall.

RUGGEDCOM RX1501 Ethernet Switch Cyber Security Features

• Integrated Router/Firewall/VPN
• Stateful Firewall with NAT
• Full IPSec Virtual Private Networking
• VPN with 3DES, AES128, AES256 support
• RUGGEDCOM CROSSBOW for NERC CIP Cyber Security compliance
• RADIUS centralized password management
• Multi-level passwords
• SSH/SSL encryption
• Enable/disable ports, MAC based port security
• VLAN (802.1Q) to segregate and secure network traffic
• SNMPv3 encrypted authentication and access security
• Optional Check Point Firewall and IPS (See RUGGEDCOM APE Module)

Protocols

• WAN
• Frame Relay RFC 1490 or RFC 1294
• PPP RFC 1661, 1332, 1321, 1334, PAP, CHAP Authentication
• Multilink PPP RFC 1990
• GOOSE messaging Support
• IP
• Routing: OSPF, BGP, RIPv1 and 2
• VRRP
• Traffic control, NTP Server,
• IP Multicast Routing
• DCHP Agent (Option 82 Capable)
• MPLS

WAN Port Options

• T1/E1 (channd)
• E1 75 Ohms via BNC
• Cellular
• DDS

Frame Relay Support

• ISO and ITU compliant, network certified
• ANSI T1.617 Annex D, Q.933 or LMI Local Signaling

Management Tools

• Web-based, SSH, CLI management interfa ces
• SNMP v1/v2/v3
• Remote Syslog
• Rich set of diagnostics with logging and alarms
• Loopback diagnostic tests
• Raw and interpreted real time line traces

Proven reliability

When it comes to RUGGEDCOM products: Siemens conducts Highly Accelerated Life Testing (HALT) in the early stages of product development to detect any design or performance issues as well as Highly Accelerated Stress Screening (HASS) later to ensure that customers get orders free of manufacturing errors and random defects. RUGGEDCOM products are thus able to provide reliable and error-free operation in harsh industrial environments.

High immunity

The proliferation of IP networking technology in real-time, mission critical control applications requires a level of immunity to electromagnetic interference (EMI) beyond what is currently delivered by commercial grade networking products. Technology used in RUGGEDCOM products is able to withstand all EMI type tests required by IEC 61850-3 without any communications loss or delays. Products with this technology also qualify as IEEE 1613 class 2 error-free devices. This innovation – known as Zero Packet Loss™ technology – is designed to provide the same level of EMI immunity as protective relaying devices.

Trusted security

RUGGEDCOM products do not just offer immunity against electromagnetic interference, they also come with a variety of advanced cybersecurity features. These include multilevel user passwords, SSH/SSL (128-bit encryption), enable/disable ports, MAC-based port security, VLAN (802.1Q) to segregate and secure network traffic, RADIUS centralized password management, as well as SNMPv3 authentication and 56-bit encryption.

RUGGEDCOM products perform at their best when the environment is at its worst, offering fast and reliable communications for electric power, transportation, oil & gas and other industries. To Explore the Ruggedcom Portfolio with us Click Here!
