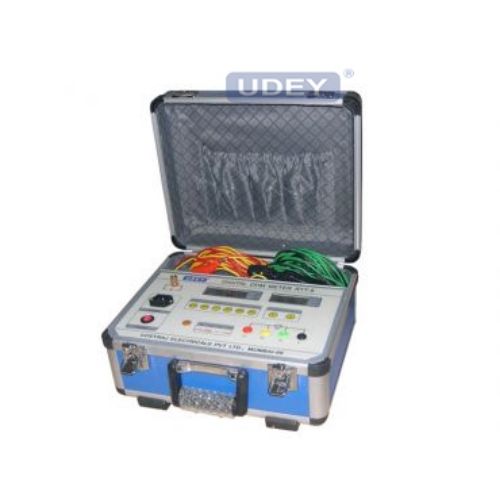

Model : TRT-2, Digital Ohm Meter

UDEY TRT-2 is a new generation, digital ohm meter using 4 terminal measurement technique. The entire test is done quickly. TRT-2 generates constant current, powers up the test current, takes the readings, and displays the results on the LCD display. The TRT-2 is powered by internal re-chargeable cell or AC mains supply. The cell is charged within the tester. True portability is achieved by the lightweight (only 2.8 kg), single unit design housing. TRT-2 is encased in an aluminum alloy cabinet with lock and lifting handle.

Machine Feature

• 4½ digit LCD displays resistance value
• 3 digit LCD displays test current / temperature
• Constant current source
• Works on: Internal re-chargeable cell or AC mains
• Front panel with legend
• Portable light weight: 7 kg approx with test leads

Machine Technical Specification

Range	RANGE TEST CURRENT RESOLUTION 20 M Ohm 2a DC 1 u ohm, 200 m ohm 2 a dc 10 u ohm, 2 ohm 0.2 A DC 0.1 m ohm 20 ohm 0.02 A DC 1 m ohm 200 ohm 0.02 A DC 10 m ohm 2 k ohm 0.02 A DC 100 m ohm
Measurement Accuracy	0.2 class
Display	4½ digit LCD for resistance 3 digit LCD for test current / temperature
‘Rx’ open indication	Display of ‘E0000’ [E flashes].
LED Indicators	Power on/range/battery condition: Recharge/Under voltage/ Full/ Discharge.
Usage environment	up to 40º C. < 85% R.H.
Enclosure	Aluminum cabinet with cover and lifting handle
Accessories	Power supply cord 3 core. Flexible testing cable set with alligator clamps. Operating Manual.
Dimensions	35(L) x 31(W) x 20(H) cm
Weight	7.0 kg with test leads.



Standard Accessories

• Mains cord 3 core.
• Flexible testing cable set with alligator clamps.
• Operating Manual.
