Siemens SF6 Insulated Voltage Transformers Air-insulated switchgear

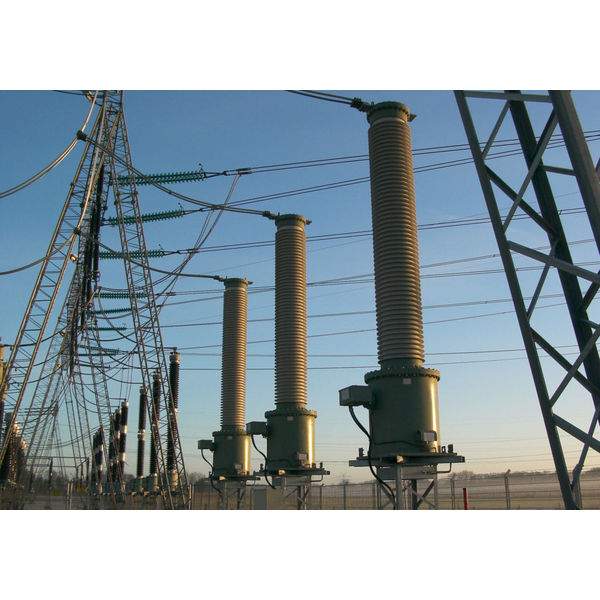

SF₆ insulated voltage transformers are used to convert high transmission line voltages (up to 800kV) to standardized low and easily measurable values, which will be used for metering, protection and control of the high voltage system. As such, the need for accurate and reliable voltage transformation is essential.

The reliability and security of Trench gas-insulated instrument transformers is based on over 50 years of innovation with gas-insulated units operating under a wide range of environmental conditions. Voltage transformers also ensure suitable electrical insulation between high voltage and low voltage measuring equipment.

Our gas-insulated voltage transformers are compliant to the latest international safety standard requirements in terms of explosion-proof, insulating material multiple chopped ageing, seismic qualification and extreme temperature conditions.

Modern production and testing facilities guarentee not only short delivery times but also a reliable operation for many years.

SF₆ insulated voltage transformers General Features

• Complete portfolio available from 72 to 800 kV
• Meet all lEC and ANSI metering and protection classes
• Rated primary Voltage up to 800 kV
• Rated Secondary Voltages:
  100 V, 100:i/3 V, 100:3 V, 110 V, 110:i/3 V, …
• Suitable also for Une Discharge use
• Wide-range ferroresonance-free design without the use of an external damping device
• Fully type tested according to international standards
• Special tests are also available to meet specific customer requirements.
