Primary Current Injection Test Set Current Injection Testers Udey Test Kits

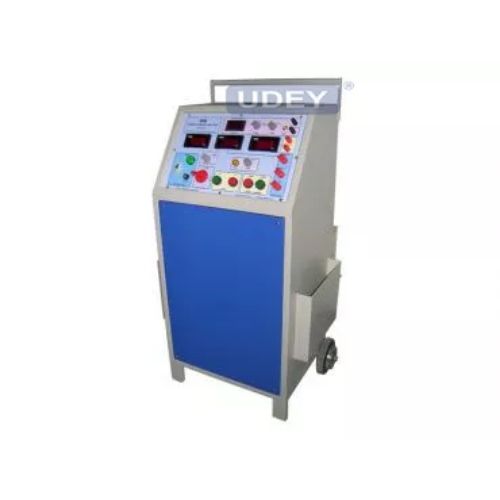

Model : PCT Series, Udey Primary Current Injection Test Set

Udey PCT series comprises of two units: 1) a control unit and 2) a loading unit. Thus making the tester compact and portable. Four models are available with outputs from 250 A to 3000 A. The control unit offers a current output of 0-10 Volt at 50 Amp or 0-5 Volt at 100 Amp. Additionally, a separate voltage output of 0-250 V AC is available for testing voltage operated relays coils or checking the magnetization characteristics of current transformers.

Machine Feature

• All outputs continuously variable.
• Built – in crystal time base multi range DIGITAL TIMER.
• True RMS digital metering of outputs.
• Compact rugged design – Fully tropicalised.
• Auto-switch off in all modes of operation.
• All current outputs fully isolated and distortion free.
• Suitable for testing thermal devices
• All controls and metering centralized.



Machine Technical Specification

Model	PCT-5	PCT-10	PCT-20	PCT-30
Supply	240 V AC, 50/60 HZ	240 V AC, 50/60 HZ	240 V AC, 50/60 HZ	240 V AC, 50/60 HZ
Power	2 kVA	4 kVA	6 kVA	6 kVA
Output Loading unit	500 A @ 0-4V 250 A @ 0-8 V	1000 A @ 0-4V 500 A @ 0-8V	2000 A @ 0-3V 1000 A @ 0-6V	3000 A @ 0-2 V 1500 A @ 0-4V
Output Control unit	100 A @ 0-5 V 50 A @ 0-10 V 0-250 V @ 8 A	100 A @ 0-5 V 50 A @ 0-10 V 0-250 V @ 15 A	100 A @ 0-5 V 50 A @ 0-10 V 0-250 V @ 15 A	100 A @ 0-5 V 50 A @ 0-10 V 0-250 V @ 15 A



• RATING :5 Minutes ON / 15 Minutes OFF. Continuous rating does not exceed 50% of the rated output.
• METERING :1) LED digital Ammeter, CT operated for current outputs.
  2) LED digital Voltmeter for voltage output.
  Accuracy : ± 1% ± 3 counts.
• DIGITAL TIMER :4 digit, solid state crystal base timer system. Multi range from .0001 to 9999 seconds.
  Accuracy : ± 0.5 % ± 2 counts
• TIMER CONTROL CIRCUITS :The timer automatically starts when the output is initiated and automatically stops when the device under test operates.
• START SIGNAL :
• STOP SIGNAL :Via-either normally open or normally closed external contacts.
• AUTO-CUT-OFF :Cuts off output on operation of device under test.
• OPERATION :Circuit breaker in input, mains on indicator, contractor controlled push buttons for current output on or off, contact mode selector and reset switch.
  ‘SET/TEST’ switch to set up test current level.
• CONSTRUCTION :Two piece unit. Sheet steel cabinets powder coated and with fold away lifting handles.
• OPTIONAL ACCESSORIES : Low inductance lead set.
  2. Precision grade (0.5%) Analogue meter with Current transformer.



Standard Accessories

• Operating Manual.
• 2 meter long 3 core mains cable.
• 2 meter long inter-connecting cable.
