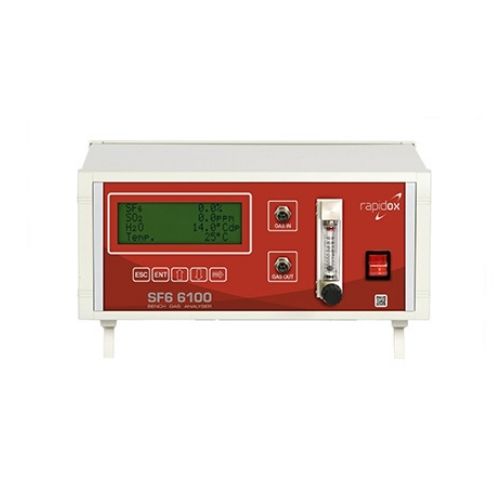

Rapidox SF₆ 6100 Bench Gas Analyser

The Rapidox SF₆ 6100 Bench gas analyser is designed for controlling and monitoring the quality of SF₆ gas over a range of applications, including medium & high voltage gas insulated electrical equipment, SF₆ gas purity tests, medical testing, manufacturing and laboratory-based research and development.

Exceptionally accurate and stable readings are achieved in simultaneous analysis and data-logging of SF₆, SO₂ and H₂O (dew point) gases. Fully compatible with the Rapidox Gas Recovery Bag, a gas output nozzle allows for the analyser to be attached, ensuring that all SF₆ gas is recovered.

The Rapidox SF₆ 6100 Bench analyser is also available as a complete and portable kit, allowing users to carry all of the equipment that they need within a heavy-duty IP66 case. Each kit includes a set of special tongue and groove self sealing couplings (compatible with famous brands), a swing handle fitted to the SF₆ analyser and a separate thermal printer.



Features of Rapidox SF6 6100 Bench Gas Analyser

• Rapid measurement response of 3-5 minutes
• Low maintenance sensors
• Fully programmable alarm circuits
• Programmable analogue outputs
• RS232/RS485 communications and complete data-logging software
• Optional long-life variable speed sample pump
• Large back-lit LCD display
• Password protection
• Operates on any worldwide mains voltage (90-260VAC)
• Compatible with industry standard gas recovery systems



Gas	Range	Accuracy
SF6 (Sulphur Hexafluoride)	0-100%	±0.5% full-scale accuracy
H2O (Dew Point)	-60oC to +20oCdp	±2oCdp accuracy of reading
SO2 (Sulphur Dioxide)	0-100ppm or 0-500ppm	±2% full-scale reading



Rapidox SF₆ 6100 Accessories

A range of accessories is available for the Rapidox SF₆ 6100 gas analysers. These include special tongue and groove self sealing couplings (compatible with famous brands) as well as a range of stainless steel braided sampling hoses for use with SF₆ gas-insulated equipment.

The Rapidox SF₆ 6100 Bench analyser is also available as a complete and portable kit that allows users to carry all of their required equipment within a heavy-duty IP66 case. Each kit contains a set of fittings with a stainless steel braided hose, a handle fitted to the analyser and a separate thermal printer.

Regular calibration significantly increases the measurement reliability and repeatability of gas analysis equipment. Cambridge Sensotec is able to offer a full calibration service at its factory via state-of-the-art automated calibration stations, designed to calibrate Rapidox gas analysers accurately and efficiently. Insured worldwide return shipping is available.
