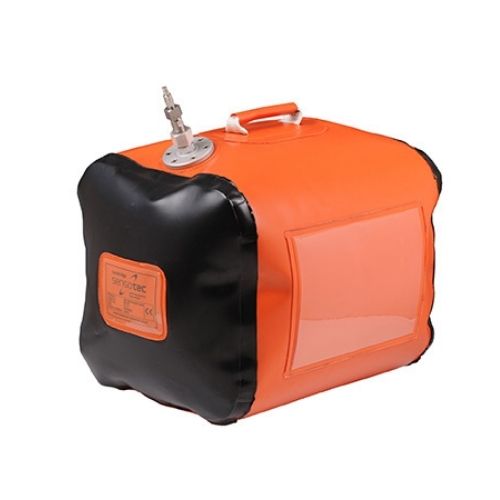

Rapidox SF₆ Gas Recovery Bag

Designed to store up to 80 litres of gas, the Rapidox SF₆ Gas Recovery Bag allows for numerous tests before it requires emptying. Once the user has finished their assessment or the gas bag has become full, it can be returned to a recycling facility for correct disposal.

Self-sealing, industry standard couplings allow for the bag to be easily connected to the Rapidox SF₆ 6100 Portable and Bench gas analysers, in order to prevent the release of SF₆ gas into the atmosphere. Additionally the Rapidox SF₆ Gas Recovery Bag is able to work in conjunction with any other gas analyser when fitted with the correct valve.

The bag is constructed from an extremely tough, heavy duty DP472 PU (712028) coated polyamide material. A safety blow off valve is incorporated, in addition to a clear pocket on the side for documents and a strong reinforced handle for transport.

Features of Rapidox Gas Recovery Bag

• Allows for continuous, emission free gas sampling
• Stores up to 80 litres of gas before emptying is required
• Constructed from heavy duty DP472 PU (712028) coated polyamide material
• Safety valve fitted for over pressure relief
• Self-sealing, industry standard couplings fitted on gas inlet
• Extremely lightweight and simple to store
• Useful for working in remote locations
• Strong reinforced handle for transport
• Fully compatible with the Rapidox SF₆ 6100 Portable and Bench gas analysers

Rapidox SF₆ 6100 Accessories

A range of accessories is available for the Rapidox SF₆ 6100 gas analysers. These include special tongue and groove self sealing couplings (compatible with famous brands) as well as a range of stainless steel braided sampling hoses for use with SF₆ gas-insulated equipment.

The Rapidox SF₆ 6100 Bench analyser is also available as a complete and portable kit that allows users to carry all of their required equipment within a heavy-duty IP66 case. Each kit contains a set of fittings with a stainless steel braided hose, a handle fitted to the analyser and a separate thermal printer.

Regular calibration significantly increases the measurement reliability and repeatability of gas analysis equipment. Cambridge Sensotec is able to offer a full calibration service at its factory via state-of-the-art automated calibration stations, designed to calibrate Rapidox gas analysers accurately and efficiently. Insured worldwide return shipping is available
