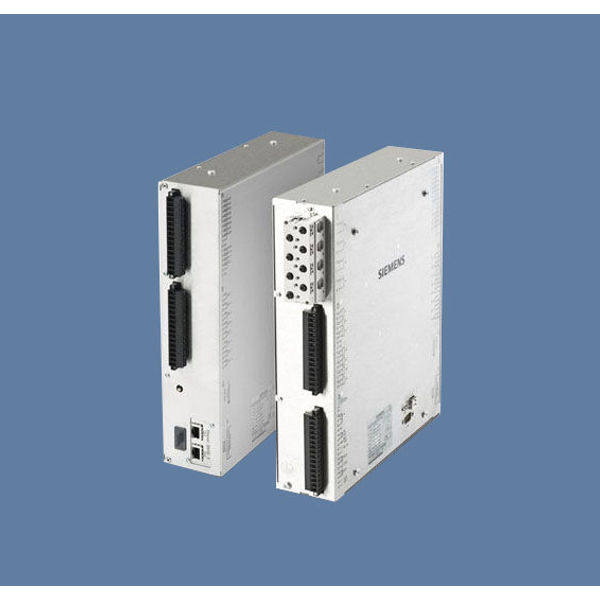

Siemens 7SC80 Siprotec Feeder Protection & Recloser Controller Relay

We offer you considerably more than just a simple time over current protection. The SIPROTEC 7SC80 Feeder Protection relay can be used for protection and automation of medium voltage distribution feeders with grounded or low resistance grounded, isolated, or compensated neutral point. The 7SC80 features flexible protection functions. 20 additional protection functions can be created by the user. For example, a rate of change of frequency function or a reverse power function can be created. The relay provides circuit-breaker control. Additional primary switching devices (grounding switches, transfer switches, and isolating switches) can also be controlled from the relay. Automation or PLC logic functionality is also implemented in the device. The integrated programmable logic (CFC) allows the user to add own functions, e.g. for the automation of switchgear (including interlocking, transfer and load shedding schemes). The user is also allowed to generate user-defined messages.

The upgrade of device and communication firmware is also possible via Ethernet. Highlights-Support of feeder automation applications, e.g. fault isolation and service restoration-Designed for harsh environment-Extended temperature range 50 C up to 85 C-Open for all different communication technologies, e.g. radio, which are used for feeder automation-Integrated GPS module is available for time synchronization-Full remote access supported for firmware and parameter updates and upgrades-A web based HMI provides complete remote control of the device-9 programmable function keys-6-line display-Integrated switch for low-cost and redundant optical rings.

Devices can be connected directly with each other at electrical modules-Parallel running communication protocols-Redundancy protocols RSTP, PRP, and HSR for highest availability-Current Jump detector-Extended CFC capabilities-RTU version without protection features-Secondary current transformers values (1 A / 5 A9 settable using DIGSI-Buffer battery exchangeable from the side-USB front port-Relay-to-relay communication through Ethernet with IEC 61850 GOOSE-Stainless steel housing-Millisecond-accurate time synchronization through Ethernet with SNTP-Inputs for Low power CTs and VTs according to IEC 61869-6 (formerly IEC 60044-7 and IEC 60044-8)

CONTROL FUNCTIONS/PROGRAMMABLE LOGIC

• Commands for the ctrl. of CB, disconnect switches (isolators/isolating switches)
• Control through keyboard, binary inputs, DIGSI 4 or SCADA system
• User-defined PLC logic with CFC (e.g. interlocking)

MONITORING FUNCTIONS

• Operational measured values V, I, f
• Energy metering values Wp,Wq
• Minimum and maximum values
• Circuit-breaker wear monitoring
• Fuse failure monitor
• 8 oscillographic fault records
• Trip circuit supervision

COMMUNICATION INTERFACES

Hardware

• Ethernet electrical and optical (miltimode or single-mode)
• IEC 61850 Edition 1 and 2
• DNP3 TCP
• PROFINET
• IEC 60870-5-104
• Ethernet redundancy protocols RSTP, PRP and HSR
• USB front interface for DIGSI 4

HARDWARE

• 4 current transformers
• 1/4 voltage transformers
• 12 binary inputs
• 8 binary outputs
• 1 life contact
• Pluggable current and voltage terminal blocks
• Connection option for low-power current and voltage transformers

Perfectly suited for protection in distribution systems and industry, with minimal space requirement. SIPROTEC Compact devices provide a comprehensive range of functions in a surprisingly compact and space-saving housing. Whether as main or as backup protection, a single SIPROTEC Compact device provides protection functionality for every conceivable fault. And it can do even more – it supports the control, automation, and monitoring functions in the substation.
