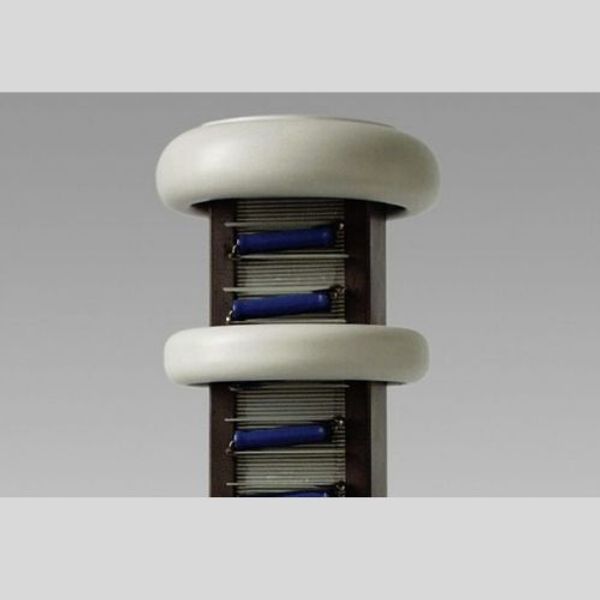

Siemens RC Voltage Dividers Air-insulated switchgear

Siemens RC Voltage Dividers : Resistive-Capacitive Voltage Dividers are designed for measurement and protection in HVDC transmission systems, and AC air insulated (AIS) or gas insulated (GIS) switchgear.

For DC: The measuring system consists of an RC voltage divider which provides inputs to a specially designed electronic power amplifier. The resulting system can accurately transform voltages within a defined burden range with linear frequency response. As such, the system is ideal for measurement for dynamic and transient phenomena and harmonics associated with HVDC systems.

In AC transmission systems: used for the measurement of Power Quality as harmonics, overvoltage’s, flicker, due an accurate representation of the voltage over a wide frequency band, and are not sensitive to the trapped charges phenomena. Furthermore the so-called RCVTs can be used for measurement and protection purposes in modern low burden applications, such as Digital Substations.

Siemens RC Voltage Dividers Main Features:

• Hermetically sealed construction
• Stainless steel expansion chamber
• High seismic withstand design available
• Provides an accurate and reliable image of the voltage on the HV line to measure and determine the origin of disturbances
• Accurate over a large frequency range
• Excellent transient characteristics
• As RCVTs do not have any saturable cores, they cannot get into ferroresonance
• Not affected by the discharge of the line: no risk for the unit

Siemens Transmission Products – Leader in innovations with comprehensive, connective and sustainable portfolio

Transmission products play a vital role in the energy value chain. Siemens Transmission Products provides all key elements including power transformers and distribution transformers as well as gas-insulated and air-insulated switchgear and components. Products are offered individually, bundled or with related engineering upgrade to systems. Our products offer low life cycle costs with maximum availability, highest efficiency and short commissioning times.

We are driving technology innovations not only regarding the performance of transmission products but also in the area of sustainability and eco efficiency. By merging physics and data we enable new products and applications: Sensformer® and Sensgear®. With our global factory network and leading innovations we provide the highest level of quality and reliability to our customers: TSOs, DSOs, power producers, EPCs and industrial companies.

Air-insulated Switchgear

• Most comprehensive portfolio for all high-voltage applications
• Lowest failure rates and reliable product life time of up to 50 years
• Proven Clean Air and vacuum interrupter technology
• Ratings up to 1,200 kV
