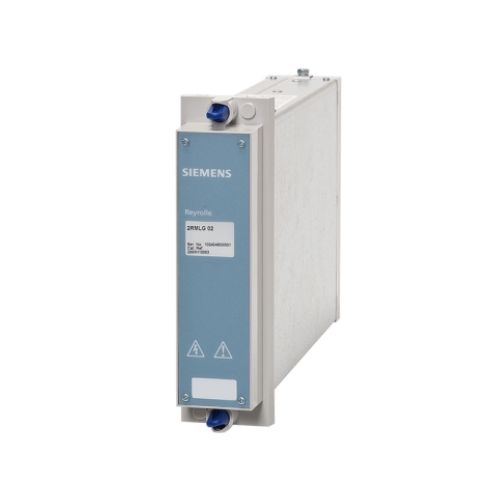

A range of test blocks with 8 to 14 ways, housed in an Epsilon size E2 case. The Siemens Reyrolle 7XG22 2RMLG Test Block is suitable for up to 14 independent circuits. Each circuit consists of a spring loaded normally closed contact linked to pairs of terminals on the rear casing block. The test block range comprises two different designs each with their associated test plug.

There are a number of standard configurations available designed for specific application. Insertion of the 7XG224 Test plug will open the contacts and break the connection on the terminal pairs. The test points are designed to be finger safe and are suitable for finger safe test leads. The test plugs are fitted with retention screws to secure them to the test block.

The 7XG225 is suitable for upto 14 or 28 independent circuits. There are a number of standard configurations available designed for specific applications with the CT shorting carried out within the test block. The 7XG226 test plug is designed for use with the 7XG225 test block.

Benefits Siemens Reyrolle 7XG22

• Siemens Reyrolle 7XG22 suppliers  has Finger Safe Design
• Finger Safe Test Leads
• Various Scheme Configurations
• Retention Fixings On Test Plugs
• 7XG222 Suitable For Vertical Or Horizontal Mounting
• Coded Test Plugs To Prevent Incorrect Insertion
• Standard 4U Case Design

Functions Siemens Reyrolle 7XG22

• 8, 10 and 14 way test blocks with options for CT shorting.
• A dedicated test plug for each option.
• 14 way test blocks for vertical or horizontal mounting.
• 8 & 10 way test blocks for horizontal mounting only
• 14 way test blocks with 5 connection options.
• 28 way test blocks with 5 connection options
• All 14 way blocks use the same 14 way test plug
• All 28 way blocks use the same 28 way test plug

Features

• CT shorting is available, using a dedicated test plug for each model of test block.
• Test plugs are fitted with 4mm shrouded test points.
• 2RMLG are 14-way devices, with variants for vertical or horizontal mounting.
• 8 & 10 ways respectively for horizontal mounting only.

The comprehensive range of Reyrolle products provides the total protection requirements of distribution markets and industrial applications – ranging from overcurrent protection via transformer protection and voltage control to a full spectrum of auxiliary and trip relays. The portfolio includes many famous products such as “Argus, “Duobias”, “Solkor”, “Rho, etc. Through successive generations, Reyrolle numerical products have been developed to increase value to system operators. Discover the portfolio!
