RUGGEDCOM REFLEX device interface library is large, with more than 50 protocol interfaces that allow you to get to data from decades old RTUs as well as the latest 61850-based IEDs. REFLEX can also be combined with the RUGGEDOM ELAN Substation Communications Server to extend data visualization to include non-operational data and enhance reliability by partitioning the data acquisition and visualization functions.:

With its SQL-based architecture, REFLEX goes well beyond the substation as well to incorporate enterprise information from disparate databases. Configuring the system is simple, with templating and automatic population of data lists for certain devices types.

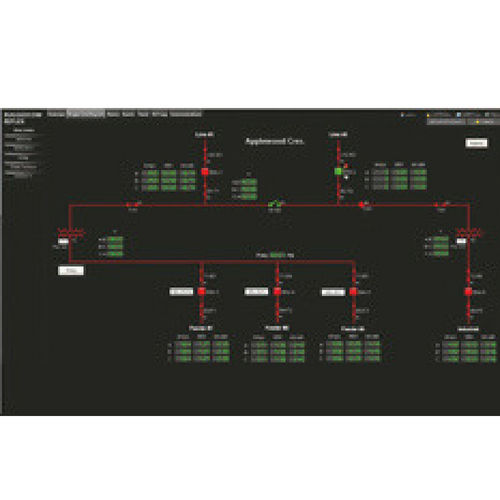

When you want to see the state of your substation network at a glance, REFLEX provides a highly customizable view that can be panned and zoomed quickly. Drill down into device faceplate emulations or detailed data summaries, while keeping a view of the network in the background.

RUGGEDCOM REFLEX allows a user to select any system point or device and tag it with information or inhibit controls to devices such as a Breakers or Reclosers. A visual indicator on the single line diagram shows the operator at a glance which devices have Hot Line tags applied and will ensure that close commands cannot be given.

On occasion, real time information isn’t enough. For this reason, RUGGEDCOM REFLEX has an integrated historian feature using our open source database that allows users to tag data points for capture simply by checking a box. For most substation HMI applications this historian will grant rapid access to months and years of information.

Siemens RUGGEDCOM REFLEX web and database-centric architecture allows for ultimate flexibility in getting projects developed quickly and cost effectively. Electric utility specific templates and graphic elements allow for rapid design and deployment. Many device types such as commonly used relays, recloser controls, remote terminal units and power quality meters are supported out-of the-box and are quickly configurable.

Updates to user screens made in the RUGGEDCOM REFLEX Designer are immediately reflected in the field, providing users with the ability to simply accept new changes to their view. No need to individually or manually update hundreds of clients.

Users can go beyond the standard graphic elements such as breakers, buses, transformers and face plates to create their own customized view of the world. Drag and drop graphic elements and shapes as well as custom drawing tools are provided to allow for unlimited flexibility in tailoring your visibility.

RUGGEDCOM REFLEX is based on modern software architecture and systems: Java, web servers, databases and protocols. Combined with advanced features like load-balancing clustering and client re-targeting, its scalability is exceptional. From a single user HMI application to enterprise wide SCADA that spans service territories via corporate WANs to provide the base for a future Distribution Management System, Reflex is designed to expand to virtually any customer’s requirements.

RUGGEDCOM REFLEX was built with security in mind from the ground up. Communication channels are encrypted using SSL technology. SCADA projects use advanced role-based authentication, and can integrate seamlessly with corporate network security using Microsoft Active Directory®.
