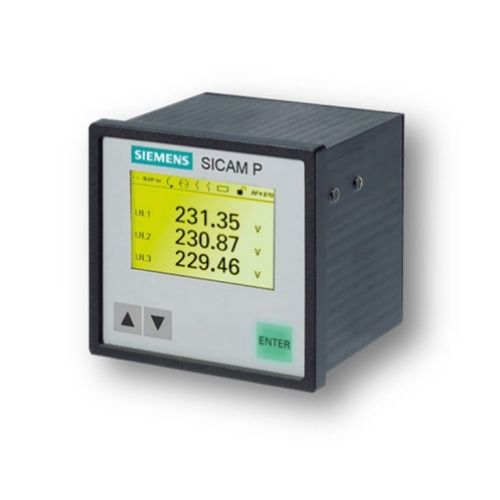

Siemens SICAM P50 Power meter device

SICAM P50 Power meter device is a power meter for panel mounting with graphic display and background illumination, or for standard rail mounting, used for acquiring and/or displaying measured values in electrical power supply systems. More than 100 values can be measured, including r.m.s. values of voltages (phase-to-phase and/or phase-to ground), currents, active, reactive and apparent power and energy, power factor, phase angle, harmonics of currents and voltages, total harmonic distortion per phase plus frequency and symmetry factor, energy output, as well as external signals and states.

Functions

• Measurement of voltage, current, active & reactive power, frequency, active & reactive energy, power factor, symmetry factor, voltage and current harmonics up to the 21st, total harmonic distortion.
• Single-phase, three-phase balanced or unbalanced connection, four-wire connection
• Communications: PROFIBUS-DP, MODBUS RTU / ASCII or IEC 60870-5-103 communication protocol simple parameterization via front key or RS485 communication port using SICAM P Manager software
• Graphic display with background illumination with up to 20 programmable screens
• Real-time clock: Measured values and states will be recorded with time stamps.1 MB memory management: The allocation of the non-volatile measurement memory is programmable.
• Recording and display of limit value violations and log entries.
• Battery: Recordings like limit value violations or energy counter values stay safely in the memory up to 3 months in case of a blackout.

Application Areas

Power monitoring systems with SICAM P, a permanently installed system, enables continuous logging of energy-related data and provides information on operational characteristics of electrical systems. SICAM P helps identify sources of energy consumption and time of peak consumption. This knowledge allows to allocate and reduce energy costs.

The major application area is power monitoring and recording at MV and LV level. The major information types are measured values, alarms and status information.

The input modules work with external signals with a measurement range of DC 0 – 20 mA. Mean values of all external analog channels as well as states of digital channels can be recorded and saved into the memory. All recorded quantities and binary state information can be “read out” and evaluated with the configuration software SICAM P Manager. Output modules can be used for conversion of any electrical quantity (current, voltage, etc.) into a DC 0 – 20 / 4 – 20 mA output signal, generation of impulses for metering, indication of limit value violations, as well as for switching operations.
