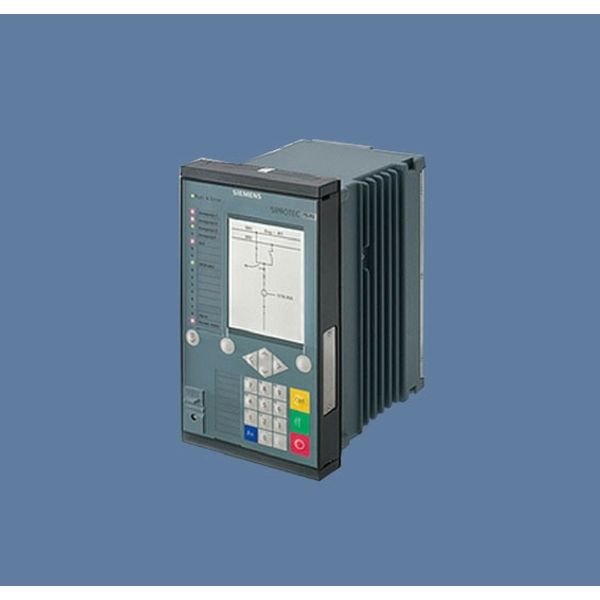

Siemens Siprotec 5 6MD85 Bay Controller Protection Relay

The SIPROTEC 5 6MD85 Bay Controller Relay is a control and automation device with optional protection function. It is designed for use in all voltage levels from distribution to transmission. As a full member of the SIPROTEC 5 family, it allows the use of a large number of protection functions from the SIPROTEC library with identical parameters like in the protection devices.

The modular hardware enables the user to integrate as many IO’s as needed. Main function: Bay Controller for medium and high voltage switchgear. Integrated operator panel and key switches (optional). Powerful automation functionality, easily configurable with DIGSI. A large number of protection functions available. Inputs and outputs:-5 predefined standard variants with 4/4-current/voltage transformers,-11 to 75 binary inputs,-9 to 41 binary outputs Hardware flexibility: Flexible adjustable HW IO-quantity within the scope of the SIPROTEC5 modular system. The use of a second row allows more than 400 in- and outputs .Width of housing:1/3 x 19 Inch – 2/1 x 19 Inch

All functions can be configured freely with DIGSI 5. For the application of some of the functions, you require the appropriate number of free function points within the device. The function point calculator in the online configurator provides support in determining the required number of function points for your device.

FUNCTIONS

• Integrated bay controller with versatile protection function from medium to extra-high voltage
• Control of switching devices
• Synchrocheck and switchgear interlocking protection
• Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE)
• Up to 4 pluggable communication modules, usable for different and redundant protocols (IEC 61850,IEC 60870-5-103, IEC 60870-5-104, DNP3 serial and TCP, Modbus TCP, PROFINET IO)
• Redundancy protocols PRP and HSR
• Arc protection
• Cyber security in accordance with NERC CIP and BDWE Whitepaper requirements
• Graphical logic editor to create powerful automation functions in the device
• Optional overcurrent protection for all voltage levels with 3- pole tripping
• Also used in switchgear with breaker-and-a-half configuration
• Overcurrent protection also configurable as emergency function
• Selective protection of overhead lines and cables with single-ended and multi-ended feeders using protection communication
• Secure serial protection data communication, also over great distances and all available physical media (fiber-optic cable, 2-wire connections and communication Networks)
• Capturing operational measured variables and protection function measured values to evaluate the plant state, to support commissioning, and to analyze faults
• Phasor Measurment Unit (PMU) for synchrophasor measured values and IEEE C37.118 protocol integrated
• Powerful fault recording (buffer for a max. record time of 80 s at 8 kHz or 320 s at 2 kHz)
• Auxiliary functions for simple tests and commissioning
• Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system

SIPROTEC 5 is part of the new generation of incomparable modular, flexible, and intelligent digital field devices. With modularly designed hardware and software and its high-performance DIGSI 5 engineering tool, the SIPROTEC 5 product family of field devices are perfect for protection, control, monitoring, and measuring applications in electrical energy systems. SIPROTEC 5 offers a wide product range with modular elements for every application and requirement.
