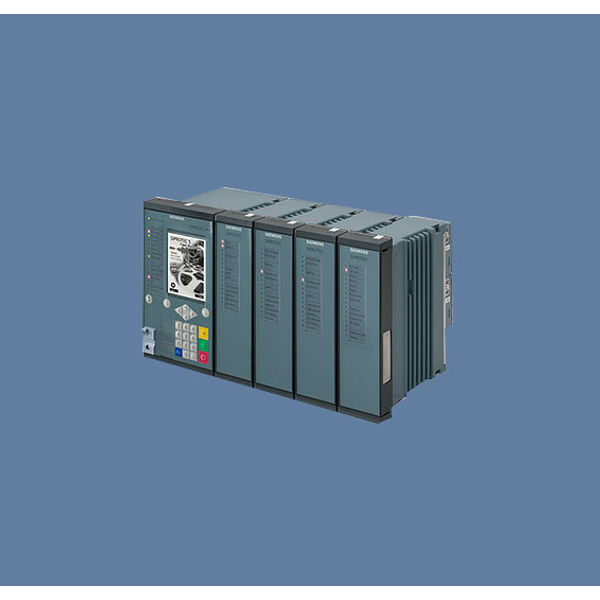

Siemens Siprotec 5 7KE85 Fault Recorder

Siprotec 7KE85 Fault Recorder is a powerful fault recorder with integrated measurement of synchrophasors (PMU) according to IEEE C37.118 and power quality measurement according to IEC 61000-4-30. Due to the great flexibility of trigger functions, the SIPROTEC 7KE85 is ideally suited for monitoring the entire energy value added chain, from generation to distribution. The powerful automation and flexible configuration with DIGSI 5 complements the range of functions.

Siprotec 7KE85 Fault Recorder Main function:

Fault Recorder

Inputs and outputs:

• 4 predefined standard variants with up to 40 analog channels,
  43 binary inputs,
  33 binary outputs

Hardware flexibility:

• Flexibly adjustable and expandable I/O quantity structure within the scope of the SIPROTEC 5 modular system.

Housing width:

• 1/3 to 1/1 x 19″

As standard:

• Conformal coating

Functions

DIGSI 5 permits all functions to be configured and combined as required.

• Up to 40 analog channels
• Fast-Scan Recorder
• Up to 2 slow-scan recorders
• Up to 5 continuous recorders and 2 trend recorders
• Power quality recordings according to IEC 61000-4-30
• Sequence-of-events recorder for continuous recording of binary status changes and IEC 61850 GOOSE messages
• Usable as Phasor Measurement Unit (PMU) according to IEEE C37.118 protocol
• Transmission of the records and triggering via IEC 61850 GOOSE messages
• Variable sampling frequencies parameterizable between 1 kHz and 16 kHz
• Distribution of the mass storage of 16 GB to the various recorders by the user as desired
• Intelligent monitoring routines of the storage medium ensure a high level of availability and completeness for the archived data
• Data compression without loss
• Time synchronization via Precision Time Protocol (PTP) IEEE 1588 protocol, IRIG-B, DCF77, and SNTP
• Routing of the measured values to the individual recorders as desired
• Combination of the measuring groups for the power calculation as desired
• Quality attributes for representing the instantaneous signal quality in the time signal view
• Trigger functions of a function block are fundamental component value, RMS value, zero-sequence, positive-sequence, negative-sequence system power, frequency power, active power and reactive power
• Level trigger and gradient trigger for every trigger function
• Flexible cross trigger and system trigger, manual trigger
• Creation of independent trigger functions with the graphic automation editor CFC (continuous function Chart)
• Trigger functions via a combination of single-point, doublepoint indications, analog values, binary signals, Boolean signals and GOOSE messages
• Consistent monitoring concept
• Auxiliary functions for easy tests and commissioning
• Special test mode for commissioning
• Fixed integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE)
• Data transmission via IEC 61850 of fault recordings in accordance with COMTRADE 2013, 1999 standard and continuous recording in accordance with IEEE Std 1159.3-2003
• Reliable data transmission via PRP and HSR redundancy protocols
• Extensive Cyber security functionality, such as role-based access control (RBAC), logging of security-related events or signed firmware
• Simple, quick, and secure access to device data via a standard Web browser without additional software
• Up to 4 pluggable communication modules, usable for different and redundant protocols (IEC 61850-8-1, IEC 61850-9-2 Client, IEC 61850-9-2 Merging Unit, IEC 60870-5-103, IEC 60870-5-104, Modbus TCP, DNP3 serial and TCP, PROFINET IO
• Intelligent terminal technology enables prewiring and a simple device replacement

SIPROTEC 5 is part of the new generation of incomparable modular, flexible, and intelligent digital field devices. With modularly designed hardware and software and its high-performance DIGSI 5 engineering tool, the SIPROTEC 5 product family of field devices are perfect for protection, control, monitoring, and measuring applications in electrical energy systems. SIPROTEC 5 offers a wide product range with modular elements for every application and requirement.
