SIEMENS SURGE ARRESTERS FOR DISTRIBUTION NETWORKS: AIR-INSULATED SWITCHGEAR

Our Siemens surge arresters for medium-voltage applications offer reliable overvoltage protection for medium-voltage distribution networks and components for applications up to 72.5 kV.

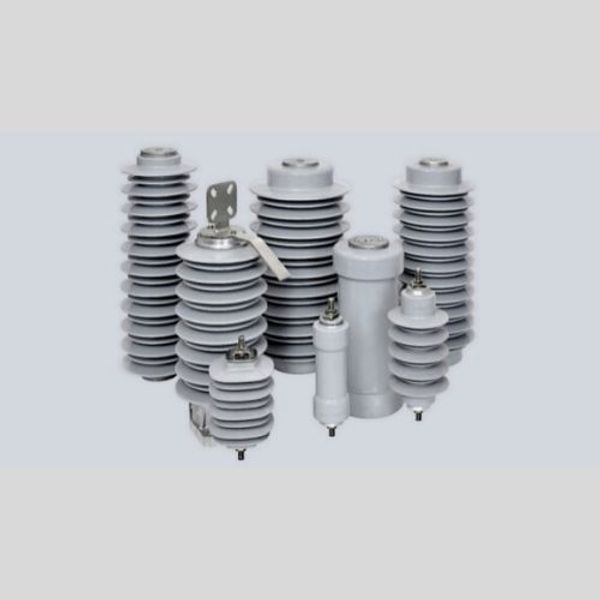

Surge arresters for distribution networks
Siemens 3EK distribution class surge arresters are ideally suited for the reliable protection of transformers, circuit breakers, medium-voltage switchgear and distribution lines.

Models available 3EK4 and 3EK7,3EK8, Arc Protection System (APS)

3EK4 and 3EK7 Medium Voltage Surge Arresters for Distribution Networks

Siemens 3EK4 and 3EK7 silicone rubber surge arresters with cage design effectively protect medium-voltage distribution networks from overvoltage.

Siemens 3EK4 and 3EK7 cage design surge arresters are ideally suited to provide reliable protection for:

• Transformers
• Circuit breakers
• Medium-voltage switchgear
• Medium-voltage distribution networks

3EK8 silicone rubber surge arresters-Medium Voltage Surge Arresters For Distribution Networks

Siemens 3EK8 silicone rubber surge arresters with wrap design effectively protect medium-voltage distribution networks from overvoltage.

Siemens 3EK8 wrap design surge arresters are ideally suited to provide reliable protection for:

• Transformers
• Circuit breakers
• Medium-voltage switchgear
• Medium-voltage distribution networks

ARC Protection System- Medium Voltage Surge Arresters for Distribution Network

If excess voltage exceeds the energy absorption capacity of a surge arrester, the metal oxide blocks can be damaged and cause the surge arrester to fail. This causes fault current, and an arc forms at both end fittings of the surge arrester. Melted metal can fall to the ground and cause a fire.

This is why type 3EK medium-voltage arresters for distribution networks can be equipped with an Arc Protection System (APS), which is installed at both ends of the surge arrester. The APS consists of electrodes nested within each other, which create the power to rotate the arc around the surge arrester housing. This reduces the formation of molten material at the end fittings, dramatically decreasing the risk of forest fires.

Siemens Surge Arresters Transmission Products – Leader in innovations with comprehensive, connective and sustainable portfolio

We are driving technology innovations not only regarding the performance of transmission products but also in the area of sustainability and eco efficiency. By merging physics and data we enable new products and applications: Sensformer® and Sensgear®. With our global factory network and leading innovations we provide the highest level of quality and reliability to our customers: TSOs, DSOs, power producers, EPCs and industrial companies.

Transmission products play a vital role in the energy value chain. Siemens Transmission Products provides all key elements including power transformers and distribution transformers as well as gas-insulated and air-insulated switchgear and components. Products are offered individually, bundled or with related engineering upgrade to systems. Our products offer low life cycle costs with maximum availability, highest efficiency and short commissioning times.

Air-insulated Switchgear

• Most comprehensive portfolio for all high-voltage applications
• Lowest failure rates and reliable product life time of up to 50 years
• Proven Clean Air and vacuum interrupter technology
• Ratings up to 1,200 kV
