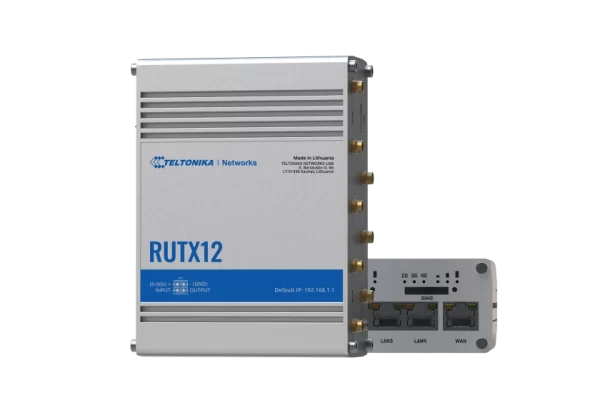

Teltonika RUTX12 Cellular Router

The Teltonika RUTX12 INDUSTRIAL CELLULAR ROUTER WITH DUAL LTE CAT 6 is designed for mission-critical applications, offering robust connectivity and reliability. This gadget is indispensable in situations where losing connection is not an option because it has two cellular modems for simultaneous connections, smooth mobile service switching, and load-balancing features.

---

Mobile
3G – up to 42 Mbps, 2 x 4G (LTE) – Cat 6 up to 300 Mbps.

Flash memory & RAM
256 MB SPI Flash, 256 MB DDR3 RAM.

Powering option
4-pin power socket, 9-50 VDC

Ethernet
5 x RJ45 ports, 10/100/1000 Mbps:
1 x WAN, compliance Supports auto MDI/MDIX; IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards.
3 x LAN, compliance Supports auto MDI/MDIX; IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards.

Wi-Fi
802.11b/g/n/ac Wave 2 (WiFi 5) Access Point (AP), Station (STA), 802.11r rapid transition, Dual Band, MU-MIMO data transmission rates up to 867 Mbps.
PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, and client isolation are all included in WPA2-Enterprise.
ESSID stealth mode, radio resource measurement (802.11k), relayd, fast roaming (802.11r), BSS transition management (802.11v), and wireless mesh (802.11s).

Interfaces
On 4-pin socket: 1 x Digital input,
1 x Digital open collector output

Bluetooth
4.0 (Low energy)

Housing & mounting
Aluminium housing with DIN rail mounting option

Measurements & weight
132 x 44.2 x 95.1 mm, 540 g.
