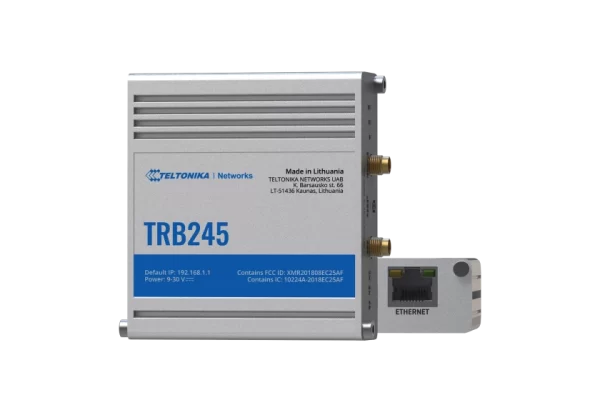

Teltonika TRB245200600 Gateways

The Teltonika TRB245200600 Gateways 4G LTE Cat 4 Gateway is a versatile and reliable solution for your connectivity needs. With blazing-fast 4G LTE speeds of up to 150 Mbps, along with support for 3G and 2G networks, this gateway ensures seamless data transmission in various environments. Featuring a sophisticated SIM switch functionality, the Teltonika TRB245200600 Gateways gateway comes equipped with 2 SIM card slots, enabling automatic switching in scenarios such as weak signal, data or SMS limit reached, roaming, network unavailability, and more.

---

Mobile
2G: up to 236.8 kbps, 3G: up to 42 Mbps, and 4G (LTE): Cat 4 up to 150 Mbps

Status
The following are some examples of network type, bandwidth, connected band, operator, operator status, data connection state, IMSI, ICCID, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
SMS send/read status, SMS configuration, SMS to SMS send/receive via HTTP POST/GET, SMS to SMS, SMS to HTTP, SMS to SMS, SMS autoreply, scheduled SMS, and SMPP

Flash memory & RAM
16 MB SPI Flash, 64 MB DDR2 RAM

Powering option
16-pin industrial terminal block has 2 pins, 9-30 VDC.

Ethernet
1 x RJ45 port, 10/100 Mbps Ethernet port

Teltonika TRB245200600 Gateways Interfaces
1 x RS232; 1 x RS485;
On 16-pin socket: 3 x Digital input/Digital open collector output (configurable),
1 x Analog input; GNSS

Housing & mounting
Aluminium housing with DIN rail mounting option

Measurements & weight
83 x 25 x 74.2 mm, 165 g
