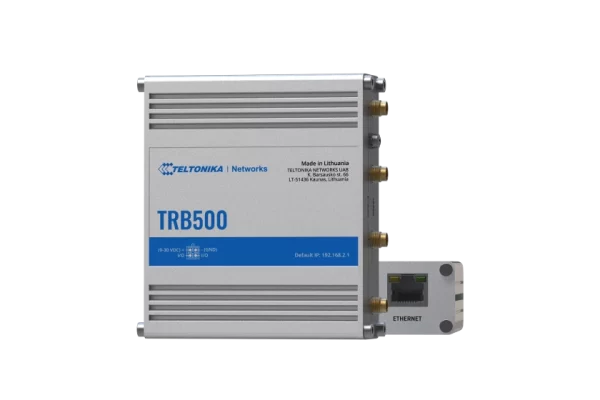

TRB500000400

Category:

Teltonika TRB500000400 Gateways

The compact and energy-efficient Teltonika TRB500000400 Gateways Industrial 5G enables ultra-fast data transmission with minimal latency. Even in places where 5G is not yet accessible, future-proofing solution infrastructures is made possible by their backward compatibility with 4G and 3G networks.


Mobile
5G Sub-6Ghz SA/NSA LTE Cat 20 2.0Gbps DL, 200Mbps UL; 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 3G – 42 Mbps DL, 5.76Mbps UL.

Status
ARFCN, UARFCN, EARFCN, MCC, MNC, data sent/received, LAC, TAC, cell ID, ARFCN, RSRP, RSRQ, EC/IO, RSCP, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, operator, operator state, data connection state, network type, CA indication, and

SMS
SMS send/read status, SMS configuration, SMS to SMS send/receive via HTTP POST/GET, SMS to SMS, SMS to HTTP, SMS to SMS, SMS autoreply, scheduled SMS, and SMPP

Flash memory & RAM
512 MB Flash, 256 MB RAM

Powering option
Industrial DC power socket with 4 pins, 9-30 VDC

Ethernet
1 x RJ45 port, 10/100/1000 Mbps

Teltonika TRB500000400 Gateways Interfaces
1 x Micro USB slave;
On 4-pin socket: 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high,
1 x Digital Output, Open collector output, max output 30 V, 300 mA

Housing & mounting
Aluminium housing with DIN rail mounting option

Measurements & weight
100 x 30 x 93.4 mm, 241 g

Discover the comprehensive range of Teltonika Products with us and get the best solution for your requirements.
