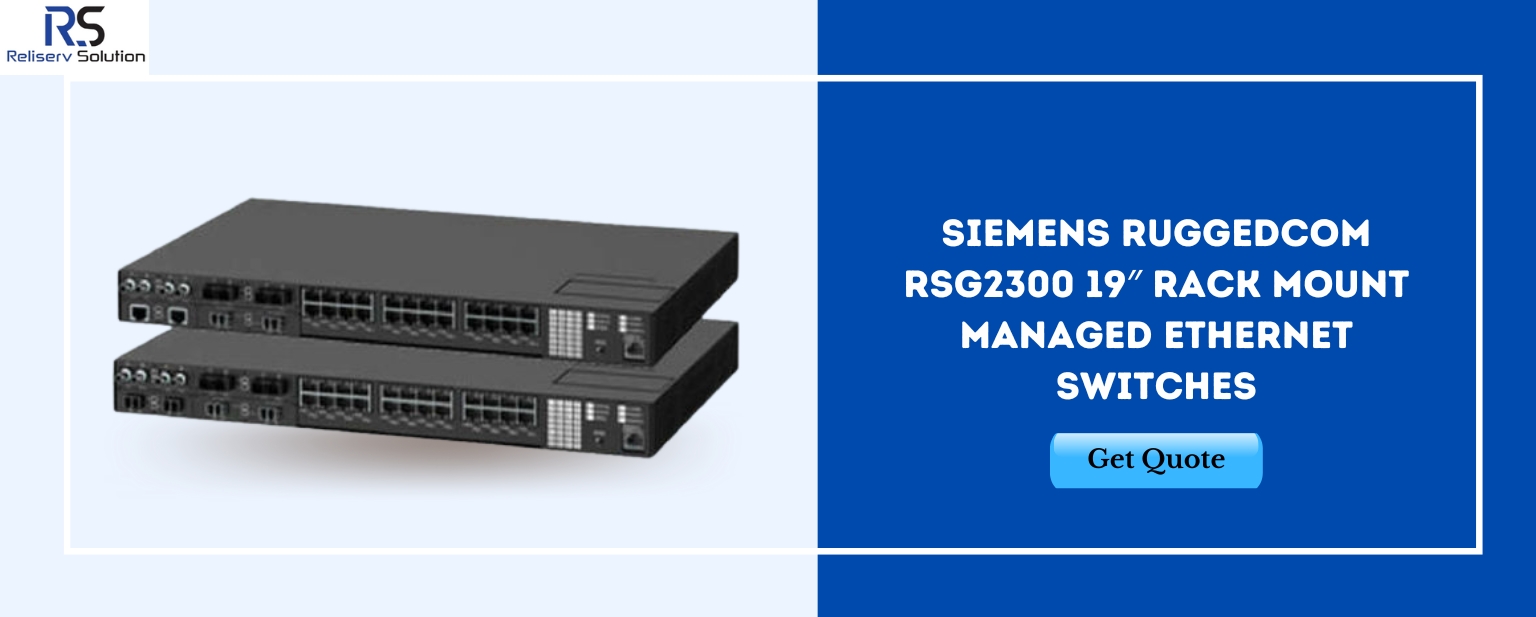

Why Industries Need Siemens Ruggedcom RSG2300 19″ Rack Mount Managed Ethernet Switches

Siemens  RUGGEDCOM RSG2300/RSG2300P are utility-grade, fully managed, 32 ports Managed Rack Mount Ethernet Switches with 4 Modular Gigabit Uplink Ports. The RSG2300 switches flexibility provides 10BaseFL /100BaseFX /1000BaseX fibre & 10/100/1000 BaseTX copper port combinations. Optional front & rear mount connectors make them highly versatile & suitable for each application. It can support multiple fibre connectors such as ST, MTRJ, LC and SC without loss of port density.

The RUGGEDCOM RSG2300P devices are utility-grade, fully managed, power over Ethernet (PoE) enabled, modular Ethernet switches. They are designed to operate in electrically harsh & climatically demanding industrial environments and utility substations. The RSG2300P comes with 2 10/100BaseTX 802.3af (PoE) compliant Ethernet ports, with options to add an additional 2 PoE ports.

These switches offer modular flexibility with up to 6 Ethernet ports, including 10BaseFL/100BaseFX/1000BaseX fibre & 10/100/1000BaseTX copper port combinations. The highly versatile Ruggedcom RSG2300P can support multiple fibre types as well as connectors like ST, MTRJ, LC and SC without loss of port density. It is an ideal solution that can power and connect several Ethernet devices like IP phones, video cameras & wireless access points where AC power is not available or are cost-prohibitive to provide locally.

Ruggedcom RSG2300 Ethernet Switch for Reliability in Harsh Environments

• Immunity to EMI & heavy electrical surges: Zero Packet Loss Technology – Meets IEEE 1613 Class 1 (electric utility substations) – Exceeds IEC 61850-3 (electric utility substations), IEC 61800-3 (variable-speed drive systems), IEC 61000-6-2 (generic industrial) & NEMA TS-2 (traffic control equipment)
• Operating temperature is from -40°C to +85°C (no fans)
• Conformal coated printed circuit boards (optional)
• 18 AWG galvanized steel enclosure
• Hazardous location certification of Class 1 Division 2

Ruggedcom RSG2300 Ethernet Switch Cybersecurity Features

• Multilevel user passwords
• SSH/SSL (128-bit encryption)
• Enable/disable ports, MAC-based port security
• Port-based network access control (802.1x)
• VLAN (802.1Q) to segregate & secure network traffic
• RADIUS centralized password management
• SNMPv3 authentication and 56-bit encryption

Ruggedcom RSG2300 Ethernet Switch Operating System (ROS) Features

• Simple plug & play operation automatic learning, negotiation as well as crossover detection
• MSTP 802.1Q-2005 (formerly 802.1s)
• RSTP (802.1w) & Enhanced Rapid Spanning Tree (eRSTP) network fault recovery (<5 MS)
• Quality of service (802.1p) for real-time traffic
• VLAN (802.1Q) with double tagging & GVRP support
• Link aggregation
• IGMP snooping for multicast filtering
• Port rate limiting & broadcast storm limiting
• Port configuration, status, statistics, mirroring, security
• SNTP time synchronization (client & server)
• Industrial automation features (e.g. Modbus)

RUGGEDCOM Operating System (ROS) Features

• Simple plug & play operation automatic learning, negotiation as well as crossover detection
• MSTP 802.1Q-2005 (formerly 802.1s)
• RSTP (802.1w) & Enhanced Rapid Spanning Tree (eRSTP) network fault recovery (<5 MS)
• Quality of service (802.1p) for real-time traffic
• VLAN (802.1Q) with double tagging & GVRP support
• Link aggregation
• IGMP snooping for multicast filtering
• Port rate limiting & broadcast storm limiting
• Port configuration, status, statistics, mirroring, security
• SNTP time synchronization (client & server)
• Industrial automation features (e.g. Modbus)

Management Tools

• Web-based, Telnet, CLI management interfaces
• SNMP v1/v2/v3 (56-bit encryption)
• Remote monitoring (RMON)
• Rich set of diagnostics with logging & alarms

Ruggedcom RSG2300 Is Designed For Tight Spaces

• Our Layer 2 Ethernet switches are designed specially to operate reliably in industrially harsh environments.
• Designed for & put to the test under the harshest environments, RUGGEDCOM products meet and exceed all recognised industry standards for performance in mission-critical applications.
• RUGGEDCOM Layer 2 Ethernet switches are available in compact & rack-mounted form factors.
• RUGGEDCOM products perform at their best when the environment is at its worst, offering fast & reliable communications for electric power, transportation and other industries.

Siemens is one of the most trusted and oldest leading MNCs in India thanks to its quality products for diverse types of power systems. To get the best deal on Siemens Ruggedcom RSG2300 19″ Rack Mount Managed Ethernet Switches contact us as Reliserv Solution is the authorized Supplier and also Channel Partner of SIEMENS Make Numerical Relays, Automation Products, Power Quality Meters & Instruments, MV Switchgear Spares, PSS SINCAL Software. We Reliserv Solution are the leading Reyrolle products supplier and exporter in Mumbai, Maharashtra. We also provide a wide range of services & customized solutions for Industries & Panel Builders. Contact us at +917506112097 or mail us your requirements at [email protected]. We deal in a wide range of products in Siemens to learn more about our Siemens Ruggedcom Ethernet Switches collection click here.
